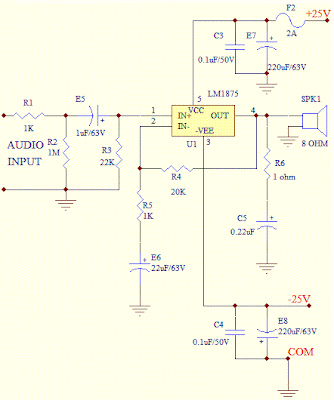

25W Audio Power Amplifier by LM1875

This audio power amplifier project is based on LM1875 amplifier module from National Semiconductor. It is able to deliver up to 30W of power using an 8 ohm load and dual 30V DC power supplies. It is designed to operate with minimum external components with current limit and thermal shutdown protection features . Other features include high gain, fast slew rate, wide power supply range, large output voltage swing and high current capability.
